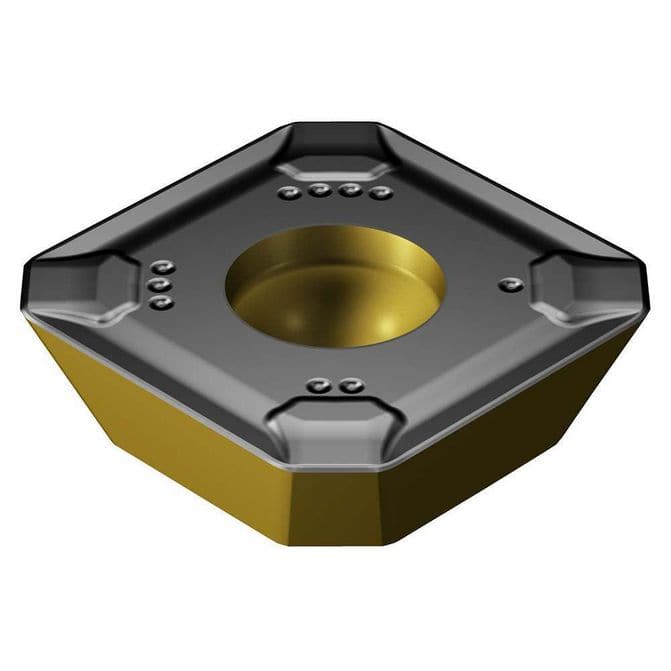

Manufacturer Part Number: 7564444|Insert Style|R245Insert Size|18Insert Material|Solid CarbideInsert Shape|SquareInscribed Circle (Inch)|Manufacturer Grade|4340Corner Radius (Decimal Inch)|0.0394Corner Radius (mm)|1.00Number Of Cutting Edges|4Thickness (Decimal Inch - 4 Decimals)|0.2402Thickness (mm)|6.10Coating/Finish|TiCN; Al2O3; TiNRelief Angle|Maximum Depth of Cut (Decimal Inch)|0.3839Maximum Depth of Cut (mm)|9.75Insert Size Code|18T6Material Grade|P40; M40; K40Width (Inch)|Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.7087Inscribed Circle (mm)|18.00Thickness Range (Decimal Inch)|0.2350 to 0.2500Corner Radius (Inch)|Inscribed Circle Range (Decimal Inch)|0.7000 to 1.0000Length Range (Decimal Inch)|0.7000 to 0.9000Insert Hand|Right HandSeries|R245Coating Process|CVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|0.2244Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Steel; Stainless Steel; Cast IronPrimary Workpiece Material Code|P; M; KSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|R245-18 T6 M-PM 4340Iso Code|R245-18 T6 M-PM 4340Standards|ANSI; ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|10Cutting Edge Style|Corner RoundedManufacturers Catalog Number|R245-18 T6 M-PM 4340Cutter Series Compatibility|R245Chip Breaker|PMCutting Direction|Material Application|Steel; Stainless Steel; Cast IronUNSPSC Code|23291601Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|CVDSingle or Double Sided Insert|SingleIncluded Angle Degree|90Length (mm)|Width (Decimal Inch - 4 Decimals)|0.7087Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.7087System Of Measurement|Metric
