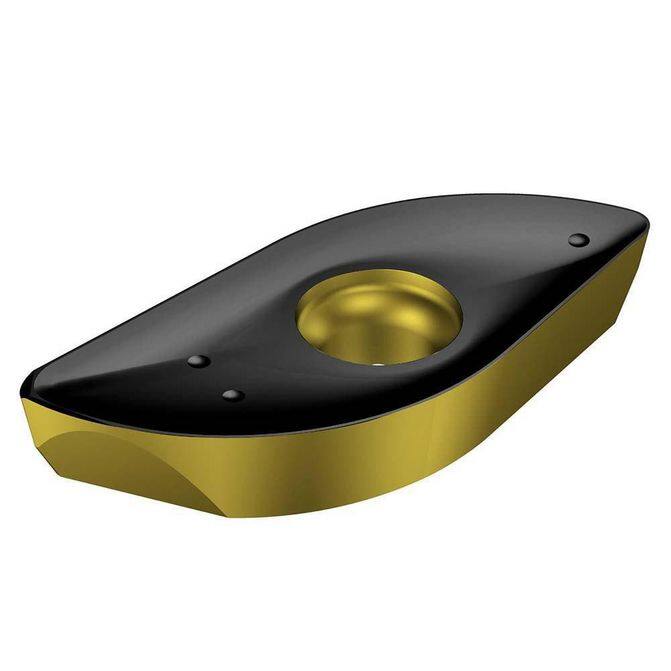

Manufacturer Part Number: 7564472|Insert Style|RA216Insert Size|25Insert Material|Solid CarbideInsert Shape|Ball NoseInscribed Circle (Inch)|Manufacturer Grade|4340Corner Radius (Decimal Inch)|Corner Radius (mm)|Number Of Cutting Edges|2Thickness (Decimal Inch - 4 Decimals)|0.1875Thickness (mm)|4.76Coating/Finish|TiCN; Al2O3; TiNRelief Angle|Maximum Depth of Cut (Decimal Inch)|0.8930Maximum Depth of Cut (mm)|Insert Size Code|2504Material Grade|P40; M40; K40Width (Inch)|Length (Inch)|Thickness (Inch)|3/16Inscribed Circle (Decimal Inch)|Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.1850 to 0.2000Corner Radius (Inch)|Inscribed Circle Range (Decimal Inch)|Length Range (Decimal Inch)|0.7000 to 0.9000Insert Hand|Right HandSeries|RA216Coating Process|CVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|0.1850Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Steel; Stainless Steel; Cast IronPrimary Workpiece Material Code|P; M; KSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|RA216-25 04 M-M 4340Iso Code|RA216-25 04 M-M 4340Standards|ANSI; ISOConvex Radius (Decimal Inch)|0.4921Concave Radius (Decimal Inch)|Rake Angle|0Cutting Edge Style|RoundedManufacturers Catalog Number|RA216-25 04 M-M 4340Cutter Series Compatibility|RA216Chip Breaker|MCutting Direction|Material Application|Steel; Stainless Steel; Cast IronUNSPSC Code|23291601Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|CVDSingle or Double Sided Insert|SingleIncluded Angle Degree|Length (mm)|22.68Width (Decimal Inch - 4 Decimals)|Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.8930System Of Measurement|
