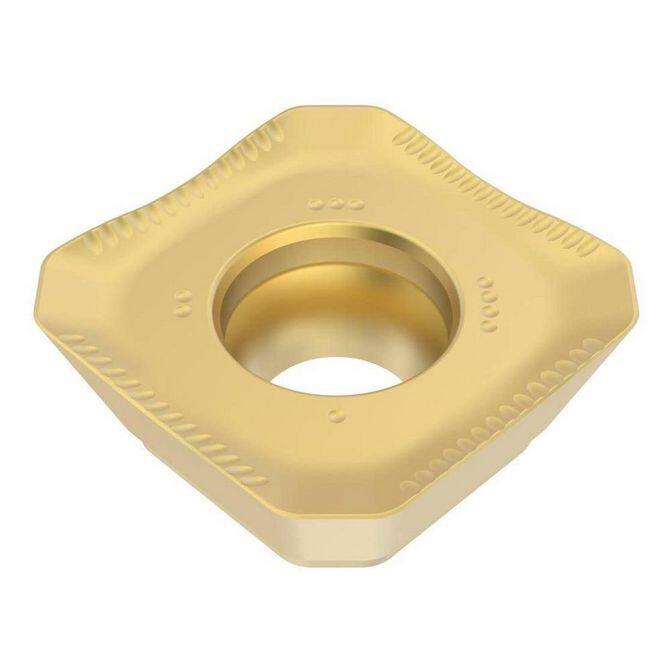

Manufacturer Part Number: 02426740|Insert Style|SEMXInsert Size|12Insert Material|Solid CarbideInsert Shape|SquareInscribed Circle (Inch)|1/2Manufacturer Grade|F40MCorner Radius (Decimal Inch)|0.0441Corner Radius (mm)|Number Of Cutting Edges|4Thickness (Decimal Inch - 4 Decimals)|0.1874Thickness (mm)|Coating/Finish|TiAlN; TiNRelief Angle|20.00Maximum Depth of Cut (Decimal Inch)|0.3425Maximum Depth of Cut (mm)|Insert Size Code|1204Material Grade|Fine GrainWidth (Inch)|1/2Length (Inch)|1/2Thickness (Inch)|3/16Inscribed Circle (Decimal Inch)|0.5000Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.1850 to 0.2000Corner Radius (Inch)|Inscribed Circle Range (Decimal Inch)|0.5000 to 0.5100Length Range (Decimal Inch)|0.5000 to 0.6000Insert Hand|NeutralSeries|SEMX-12Coating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|0.1772Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|0.5000Rake|PositivePrimary Workpiece Material|Steel; Cast Iron; Superalloys & TitaniumPrimary Workpiece Material Code|P; K; SSecondary Workpiece Material|Cast Iron; Non-Ferrous MetalSecondary Workpiece Material Code|K; NAnsi Code|SEMX1204AFTN-ME12Iso Code|SEMX1204AFTN-ME12Standards|ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|21Cutting Edge Style|T-LandManufacturers Catalog Number|SEMX1204AFTN-ME12Cutter Series Compatibility|R217.53-12; R220.53-12Chip Breaker|ME12Cutting Direction|Material Application|Steel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & TitaniumUNSPSC Code|23291601Shape|SquareLength of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|PVDSingle or Double Sided Insert|SingleIncluded Angle Degree|90Length (mm)|Width (Decimal Inch - 4 Decimals)|0.5000Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.5000System Of Measurement|Decimal Inch
