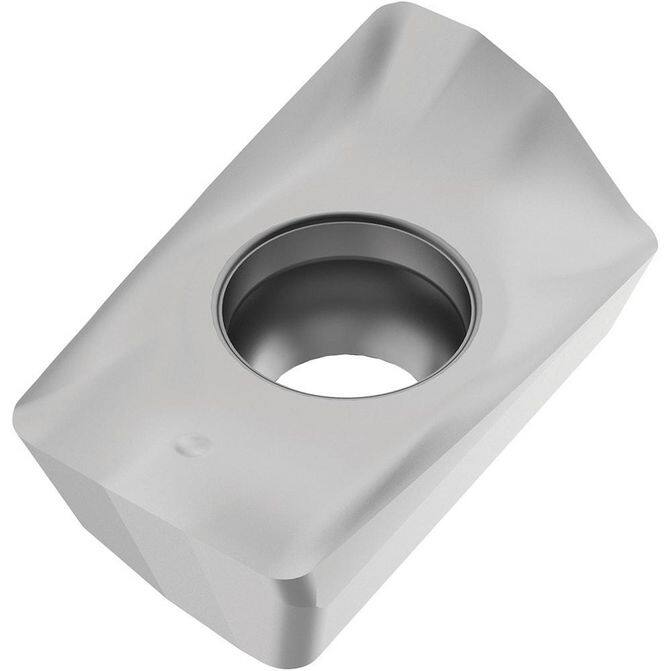

Manufacturer Part Number: 10000077|Insert Style|XOEXInsert Size|16Insert Material|Solid CarbideInsert Shape|ParallelogramInscribed Circle (Inch)|Manufacturer Grade|H25Corner Radius (Decimal Inch)|0.0315Corner Radius (mm)|Number Of Cutting Edges|2Thickness (Decimal Inch - 4 Decimals)|0.2323Thickness (mm)|Coating/Finish|Bright/UncoatedRelief Angle|15.20Maximum Depth of Cut (Decimal Inch)|0.6063Maximum Depth of Cut (mm)|Insert Size Code|160508Material Grade|MicrograinWidth (Inch)|Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.4016Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.2200 to 0.2350Corner Radius (Inch)|1/32Inscribed Circle Range (Decimal Inch)|0.4000 to 0.5000Length Range (Decimal Inch)|0.6000 to 0.6500Insert Hand|Right HandSeries|XOEX-16Coating Process|UncoatedHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|0.1772Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|0.6063Rake|PositivePrimary Workpiece Material|Non-Ferrous MetalPrimary Workpiece Material Code|NSecondary Workpiece Material|Superalloys & TitaniumSecondary Workpiece Material Code|SAnsi Code|XOEX160508FR-E07Iso Code|XOEX160508FR-E07Standards|ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|23Cutting Edge Style|SharpManufacturers Catalog Number|XOEX160508FR-E07Cutter Series Compatibility|R217.69-XO16; R220.69-XO16Chip Breaker|E07Cutting Direction|Material Application|Non-Ferrous Metal; Superalloys & TitaniumUNSPSC Code|23291601Shape|ParallelogramLength of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|UncoatedSingle or Double Sided Insert|SingleIncluded Angle Degree|90Length (mm)|Width (Decimal Inch - 4 Decimals)|0.4016Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.6063System Of Measurement|Decimal Inch
