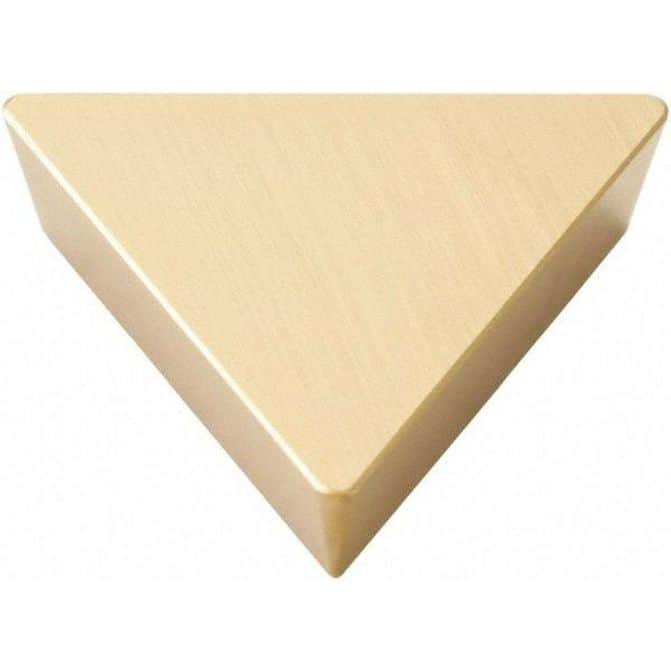

Manufacturer Part Number: 02505952|Insert Style|TPUNInsert Size|16Insert Material|Solid CarbideInsert Shape|TriangleInscribed Circle (Inch)|3/8Manufacturer Grade|F40MCorner Radius (Decimal Inch)|0.0315Corner Radius (mm)|Number Of Cutting Edges|3Thickness (Decimal Inch - 4 Decimals)|0.1252Thickness (mm)|Coating/Finish|TiAlN; TiNRelief Angle|11.00Maximum Depth of Cut (Decimal Inch)|0.5315Maximum Depth of Cut (mm)|Insert Size Code|160308Material Grade|Fine GrainWidth (Inch)|17/32Length (Inch)|17/32Thickness (Inch)|1/8Inscribed Circle (Decimal Inch)|0.3750Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.1250 to 0.1500Corner Radius (Inch)|1/32Inscribed Circle Range (Decimal Inch)|0.3500 to 0.4000Length Range (Decimal Inch)|0.5000 to 0.6000Insert Hand|NeutralSeries|TPUN-16Coating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|0.5315Rake|NeutralPrimary Workpiece Material|Steel; Cast Iron; Superalloys & TitaniumPrimary Workpiece Material Code|P; K; SSecondary Workpiece Material|Cast Iron; Non-Ferrous MetalSecondary Workpiece Material Code|K; NAnsi Code|TPUN160308TIso Code|TPUN160308TStandards|ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|0Cutting Edge Style|T-LandManufacturers Catalog Number|TPUN160308TCutter Series Compatibility|R220.17-16Chip Breaker|NoneCutting Direction|Material Application|Steel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & TitaniumUNSPSC Code|23291601Shape|TriangleLength of Cut (mm)|Insert Holding Method|Wedge ClampProduct Service Code|Coating Classification|PVDSingle or Double Sided Insert|SingleIncluded Angle Degree|60Length (mm)|Width (Decimal Inch - 4 Decimals)|0.5315Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.5315System Of Measurement|Decimal Inch
