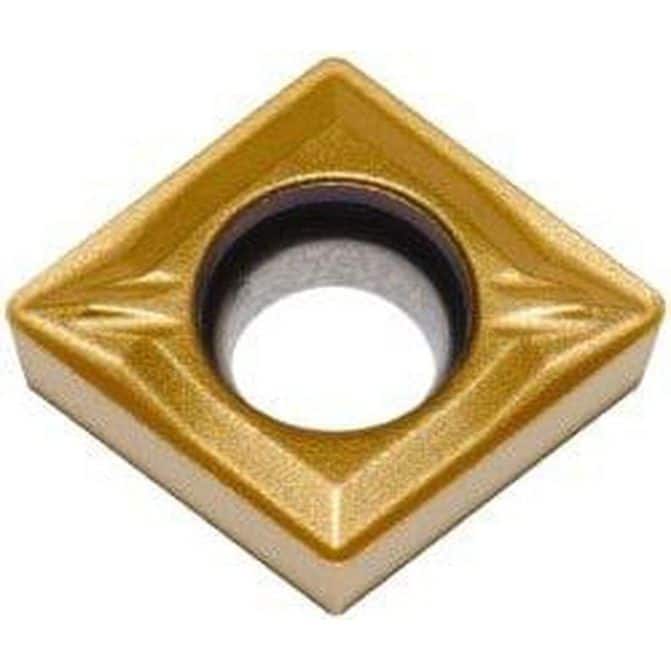

Manufacturer Part Number: 02754802|Relief Angle|7Corner Radius (mm)|Corner Radius (Inch)|1/32Corner Radius (Decimal Inch)|0.0315Included Angle|80degreeManufacturer Grade|CP500Coating/Finish|TiAlN; TiNWiper Edge|NoInsert Hand|NeutralInsert Thickness|Insert Thickness (Inch)|3/32Insert Thickness (Decimal Inch)|0.0937Series|CCMT-MF2Inscribed Circle (Inch)|1/4Inscribed Circle (Decimal Inch)|0.2500Inscribed Circle (mm)|6.35Insert Material|CarbideInsert Shape|Diamond 80Chipbreaker Operation|Grade Characteristics|Number Of Cutting Edges|2Insert Shape Code|CSingle Or Double End|Hole Diameter (Decimal Inch)|0.1142Hole Diameter (Mm) ( - 0 Decimals)|Maximum Depth of Cut (mm)|Maximum Depth of Cut (Decimal Inch)|0.2205Maximum Depth of Cut (Fractional Inch)|Insert Holding Method|ScrewWidth (Inch)|1/4inClearance Code|CTolerance Code|MCoating Process|PVDLength Range (Decimal Inch)|0.0000 - 0.3000Rake|PositiveInsert Length (mm)|Insert Length (Decimal Inch)|0.2559Insert Length (Inch)|Primary Workpiece Material|Stainless SteelPrimary Workpiece Material Code|MSecondary Workpiece Material|Steel; Cast Iron; Super-alloys & TitaniumSecondary Workpiece Material Code|P; K; SAnsi Code|Iso Code|CCMT060208-MF2Standards|ANSI; ISOManufacturers Catalog Number|02754802Cutting Direction|Material Grade|M10; M20; M30Single or Multi Tipped|Stocking Category|Proprietary Coating Designation|Multilayer CoatingLead Angle|80degreeCoating Classification|PVDChip Breaker|MF2Rake Angle|Cutting Edge Style|Chamfered & HonedStyle|Industry Standard Number|CCMT21.52-MF2Width (Decimal Inch - 4 Decimals)|0.2500inWidth (mm - 2 Decimals)|Multi-Use Tool|YesFull Radius|NoMulti-Use Application|Boring; Facing; TurningTip Length (Decimal Inch)|Tip Length (mm)|ANSI Size Code|ISO Size Code|System Of Measurement|Product Service Code|UNSPSC Code|23242105Insert Style|CCMTInsert Size Code|21.52
