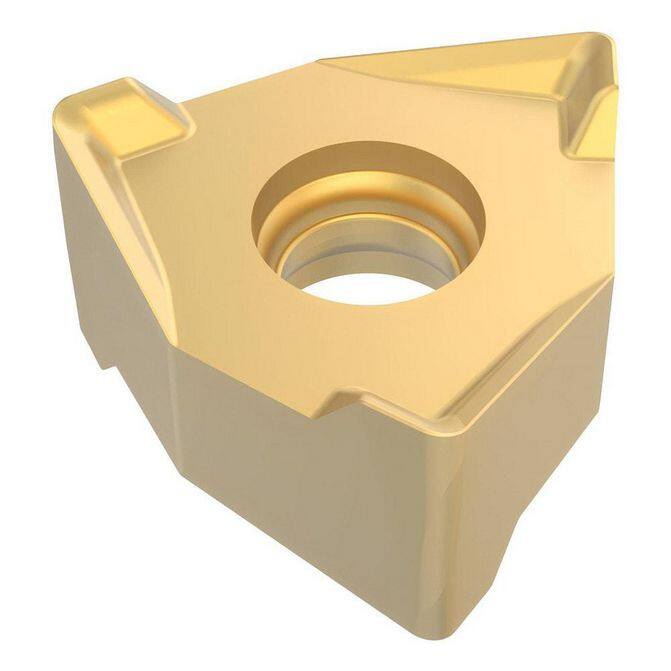

Manufacturer Part Number: 02623226|Insert Style|XNEXInsert Size|08Insert Material|Solid CarbideInsert Shape|TrigonInscribed Circle (Inch)|Manufacturer Grade|F40MCorner Radius (Decimal Inch)|0.0315Corner Radius (mm)|Number Of Cutting Edges|6Thickness (Decimal Inch - 4 Decimals)|0.2539Thickness (mm)|Coating/Finish|TiAlN; TiNRelief Angle|0.00Maximum Depth of Cut (Decimal Inch)|0.2953Maximum Depth of Cut (mm)|Insert Size Code|080608Material Grade|Fine GrainWidth (Inch)|Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.4913Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.2500 to 0.3500Corner Radius (Inch)|1/32Inscribed Circle Range (Decimal Inch)|0.4000 to 0.5000Length Range (Decimal Inch)|0.0000 to 0.3200Insert Hand|Right HandSeries|XNEX-08Coating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|0.1811Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|0.2953Rake|NegativePrimary Workpiece Material|Steel; Cast Iron; Superalloys & TitaniumPrimary Workpiece Material Code|P; K; SSecondary Workpiece Material|Cast Iron; Non-Ferrous MetalSecondary Workpiece Material Code|K; NAnsi Code|XNEX080608TR-ME09Iso Code|XNEX080608TR-ME09Standards|ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|27Cutting Edge Style|T-LandManufacturers Catalog Number|XNEX080608TR-ME09Cutter Series Compatibility|R220.96-08Chip Breaker|ME09Cutting Direction|Material Application|Steel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & TitaniumUNSPSC Code|23291601Shape|TrigonLength of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|PVDSingle or Double Sided Insert|DoubleIncluded Angle Degree|88.28Length (mm)|Width (Decimal Inch - 4 Decimals)|0.4913Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.2953System Of Measurement|
