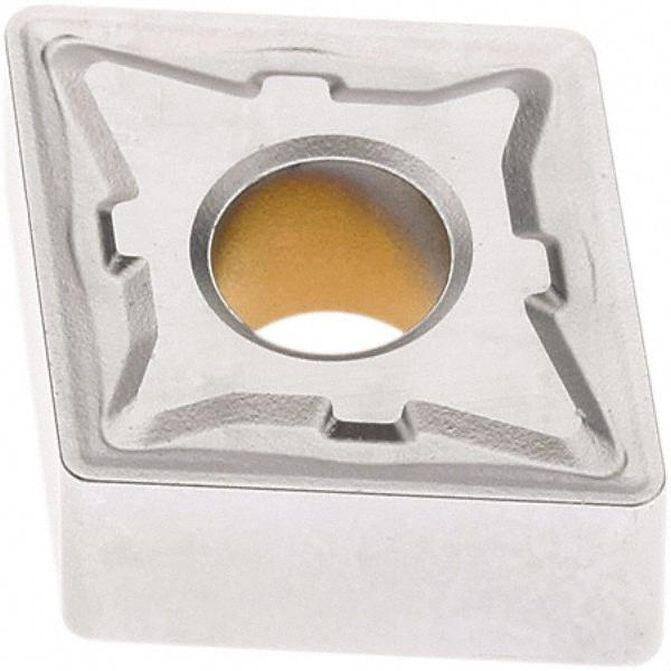

Manufacturer Part Number: 02960538|Relief Angle|0Corner Radius (mm)|Corner Radius (Inch)|1/64Corner Radius (Decimal Inch)|0.0157Included Angle|80degreeManufacturer Grade|TP2501Coating/Finish|TiCN; Al2O3; CrWiper Edge|NoInsert Hand|NeutralInsert Thickness|Insert Thickness (Inch)|3/16Insert Thickness (Decimal Inch)|0.1874Series|CNMG-M5Inscribed Circle (Inch)|1/2Inscribed Circle (Decimal Inch)|0.5000Inscribed Circle (mm)|Insert Material|CarbideInsert Shape|Diamond 80Chipbreaker Operation|Grade Characteristics|Number Of Cutting Edges|4Insert Shape Code|CSingle Or Double End|Hole Diameter (Decimal Inch)|0.2028Hole Diameter (Mm) ( - 0 Decimals)|5.15Maximum Depth of Cut (mm)|Maximum Depth of Cut (Decimal Inch)|0.4921Maximum Depth of Cut (Fractional Inch)|Insert Holding Method|Clamp; Pin; Lever LockWidth (Inch)|1/2inClearance Code|NTolerance Code|MCoating Process|CVDLength Range (Decimal Inch)|0.5000 - 0.6000Rake|NegativeInsert Length (mm)|Insert Length (Decimal Inch)|0.5079Insert Length (Inch)|Primary Workpiece Material|SteelPrimary Workpiece Material Code|PSecondary Workpiece Material|Stainless Steel; Cast IronSecondary Workpiece Material Code|M; KAnsi Code|Iso Code|CNMG120404-M5Standards|ANSI; ISOManufacturers Catalog Number|02960538Cutting Direction|Material Grade|P10; P20; P30; P35Single or Multi Tipped|Multi TippedStocking Category|Proprietary Coating Designation|DuratomicLead Angle|80degreeCoating Classification|DuratomicChip Breaker|M5Rake Angle|Cutting Edge Style|Chamfered & HonedStyle|Industry Standard Number|CNMG431-M5Width (Decimal Inch - 4 Decimals)|0.5000inWidth (mm - 2 Decimals)|Multi-Use Tool|YesFull Radius|NoMulti-Use Application|Boring; Facing; TurningTip Length (Decimal Inch)|Tip Length (mm)|ANSI Size Code|ISO Size Code|System Of Measurement|Product Service Code|UNSPSC Code|23242105Insert Style|CNMGInsert Size Code|431
