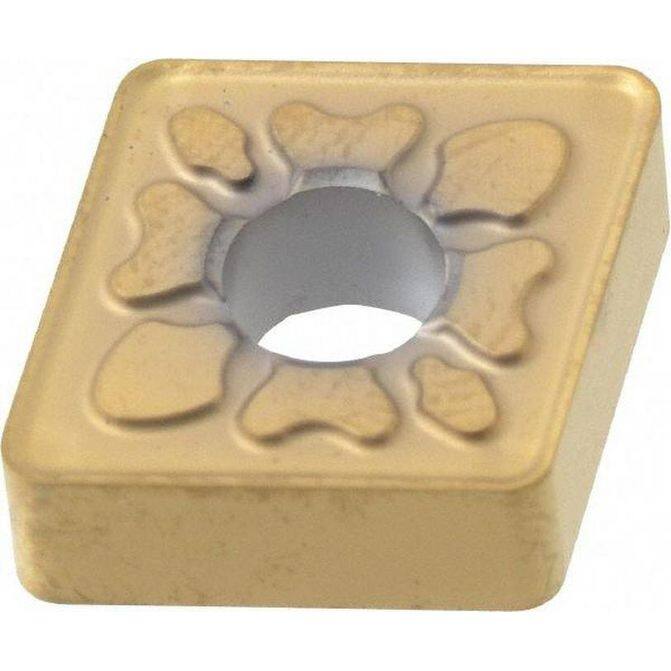

Manufacturer Part Number: 02615994|Relief Angle|0Corner Radius (mm)|Corner Radius (Inch)|3/64Corner Radius (Decimal Inch)|0.0472Included Angle|80degreeManufacturer Grade|TS2500Coating/Finish|TiAlN; TiNWiper Edge|NoInsert Hand|NeutralInsert Thickness|Insert Thickness (Inch)|3/16Insert Thickness (Decimal Inch)|0.1874Series|CNMG-MF4Inscribed Circle (Inch)|1/2Inscribed Circle (Decimal Inch)|0.5000Inscribed Circle (mm)|12.70Insert Material|CarbideInsert Shape|Diamond 80Chipbreaker Operation|Grade Characteristics|Number Of Cutting Edges|4Insert Shape Code|CSingle Or Double End|Hole Diameter (Decimal Inch)|0.2028Hole Diameter (Mm) ( - 0 Decimals)|Maximum Depth of Cut (mm)|Maximum Depth of Cut (Decimal Inch)|0.4606Maximum Depth of Cut (Fractional Inch)|Insert Holding Method|Clamp; Pin; Lever LockWidth (Inch)|1/2inClearance Code|NTolerance Code|MCoating Process|PVDLength Range (Decimal Inch)|0.5000 - 0.6000Rake|NegativeInsert Length (mm)|Insert Length (Decimal Inch)|0.5079Insert Length (Inch)|Primary Workpiece Material|Superalloys & TitaniumPrimary Workpiece Material Code|SSecondary Workpiece Material|Steel; Stainless Steel; Cast IronSecondary Workpiece Material Code|P; M; KAnsi Code|Iso Code|CNMG120412-MF4Standards|ANSI; ISOManufacturers Catalog Number|02615994Cutting Direction|Material Grade|S10; S20Single or Multi Tipped|Stocking Category|Proprietary Coating Designation|Multilayer CoatingLead Angle|80degreeCoating Classification|PVDChip Breaker|MF4Rake Angle|Cutting Edge Style|Chamfered & HonedStyle|Industry Standard Number|CNMG433-MF4Width (Decimal Inch - 4 Decimals)|0.5000inWidth (mm - 2 Decimals)|Multi-Use Tool|YesFull Radius|NoMulti-Use Application|Boring; Facing; TurningTip Length (Decimal Inch)|Tip Length (mm)|ANSI Size Code|ISO Size Code|System Of Measurement|Product Service Code|UNSPSC Code|23242105Insert Style|CNMGInsert Size Code|433
