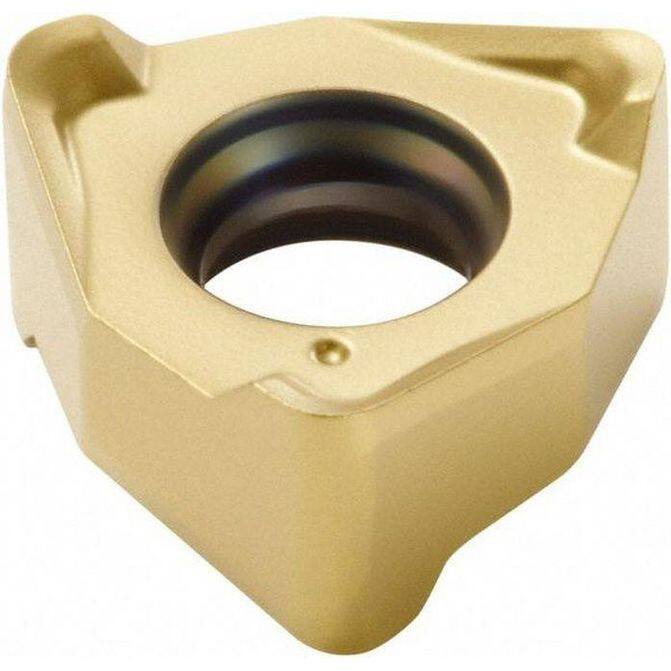

Manufacturer Part Number: 02849150|Insert Style|XNEXInsert Size|04Insert Material|Solid CarbideInsert Shape|TrigonInscribed Circle (Inch)|Manufacturer Grade|F40MCorner Radius (Decimal Inch)|0.0315Corner Radius (mm)|0.80Number Of Cutting Edges|6Thickness (Decimal Inch - 4 Decimals)|0.1303Thickness (mm)|Coating/Finish|TiAlN; TiNRelief Angle|0Maximum Depth of Cut (Decimal Inch)|0.1575Maximum Depth of Cut (mm)|Insert Size Code|040308Material Grade|Fine GrainWidth (Inch)|Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.2638Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.1250 to 0.1500Corner Radius (Inch)|1/32Inscribed Circle Range (Decimal Inch)|0.2500 to 0.3000Length Range (Decimal Inch)|0.0000 to 0.3200Insert Hand|Right HandSeries|XNEX-04Coating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|0.1244Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|0.1575Rake|NegativePrimary Workpiece Material|Steel; Cast Iron; Superalloys & TitaniumPrimary Workpiece Material Code|P; K; SSecondary Workpiece Material|Cast Iron; Non-Ferrous MetalSecondary Workpiece Material Code|K; NAnsi Code|XNEX040308R-M06Iso Code|XNEX040308R-M06Standards|ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|32.6Cutting Edge Style|HonedManufacturers Catalog Number|XNEX040308R-M06Cutter Series Compatibility|R217.96-04; R220.96-04Chip Breaker|M06Cutting Direction|Material Application|Steel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & TitaniumUNSPSC Code|Shape|TrigonLength of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|PVDSingle or Double Sided Insert|DoubleIncluded Angle Degree|88Length (mm)|Width (Decimal Inch - 4 Decimals)|0.2638Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.1575System Of Measurement|
