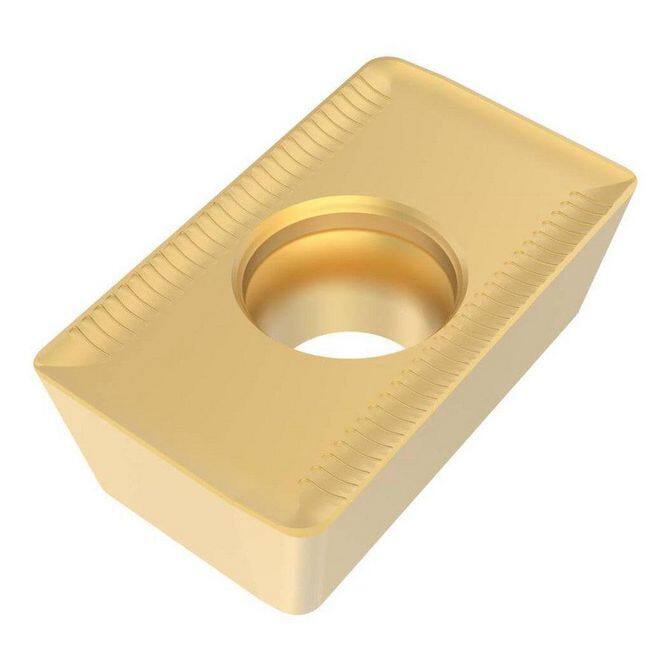

Manufacturer Part Number: 00099174|Insert Style|APKTInsert Size|16Insert Material|Solid CarbideInsert Shape|ParallelogramInscribed Circle (Inch)|3/8Manufacturer Grade|F40MCorner Radius (Decimal Inch)|0.0315Corner Radius (mm)|Number Of Cutting Edges|2Thickness (Decimal Inch - 4 Decimals)|0.1874Thickness (mm)|Coating/Finish|TiAlN; TiNRelief Angle|11.00Maximum Depth of Cut (Decimal Inch)|0.6220Maximum Depth of Cut (mm)|Insert Size Code|1604Material Grade|Fine GrainWidth (Inch)|3/8Length (Inch)|Thickness (Inch)|3/16Inscribed Circle (Decimal Inch)|0.3750Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.1850 to 0.2000Corner Radius (Inch)|1/32Inscribed Circle Range (Decimal Inch)|0.3500 to 0.4000Length Range (Decimal Inch)|0.6000 to 0.6500Insert Hand|Right HandSeries|APKT-16Coating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|0.1772Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|0.6476Rake|PositivePrimary Workpiece Material|Steel; Cast Iron; Superalloys & TitaniumPrimary Workpiece Material Code|P; K; SSecondary Workpiece Material|Cast Iron; Non-Ferrous MetalSecondary Workpiece Material Code|K; NAnsi Code|APKT1604PDTR-ME14Iso Code|APKT1604PDTR-ME14Standards|ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|24Cutting Edge Style|T-LandManufacturers Catalog Number|APKT1604PDTR-ME14Cutter Series Compatibility|R217.69-16; R220.69-16Chip Breaker|ME14Cutting Direction|Material Application|Steel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & TitaniumUNSPSC Code|23291601Shape|ParallelogramLength of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|PVDSingle or Double Sided Insert|SingleIncluded Angle Degree|85Length (mm)|Width (Decimal Inch - 4 Decimals)|0.3750Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.6476System Of Measurement|
