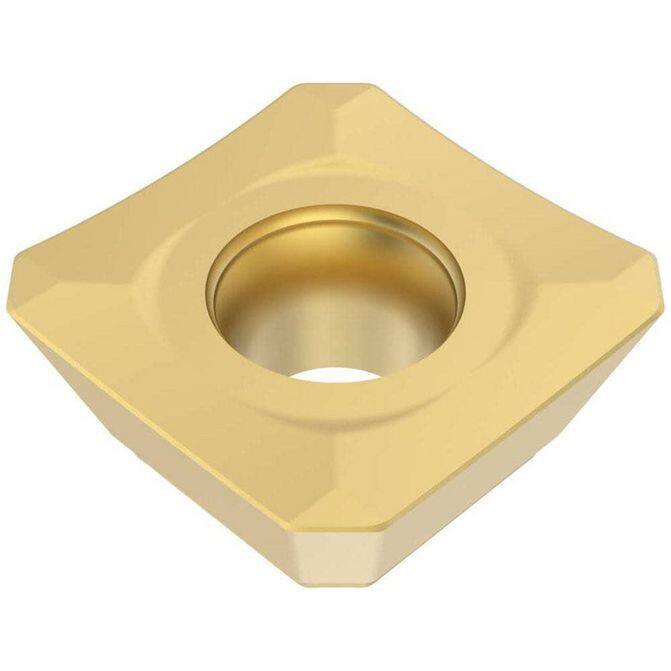

Manufacturer Part Number: 02449036|Insert Style|SEEXInsert Size|09Insert Material|Solid CarbideInsert Shape|SquareInscribed Circle (Inch)|3/8Manufacturer Grade|F40MCorner Radius (Decimal Inch)|0.0118Corner Radius (mm)|Number Of Cutting Edges|4Thickness (Decimal Inch - 4 Decimals)|0.1563Thickness (mm)|Coating/Finish|TiAlN; TiNRelief Angle|20Maximum Depth of Cut (Decimal Inch)|0.2795Maximum Depth of Cut (mm)|Insert Size Code|09T3Material Grade|Fine GrainWidth (Inch)|3/8Length (Inch)|3/8Thickness (Inch)|5/32Inscribed Circle (Decimal Inch)|0.3750Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.1500 to 0.1750Corner Radius (Inch)|Inscribed Circle Range (Decimal Inch)|0.3500 to 0.4000Length Range (Decimal Inch)|0.3200 to 0.4000Insert Hand|NeutralSeries|SEEX-09Coating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|0.1378Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|0.3748Rake|NeutralPrimary Workpiece Material|Steel; Cast Iron; Superalloys & TitaniumPrimary Workpiece Material Code|P; K; SSecondary Workpiece Material|Cast Iron; Non-Ferrous MetalSecondary Workpiece Material Code|K; NAnsi Code|SEEX09T3AFTN-M08Iso Code|SEEX09T3AFTN-M08Standards|ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|0Cutting Edge Style|T-LandManufacturers Catalog Number|SEEX09T3AFTN-M08Cutter Series Compatibility|R217.53-09; R220.53-09Chip Breaker|M08Cutting Direction|Material Application|Steel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & TitaniumUNSPSC Code|Shape|SquareLength of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|PVDSingle or Double Sided Insert|SingleIncluded Angle Degree|90Length (mm)|Width (Decimal Inch - 4 Decimals)|0.3750Width (mm - 2 Decimals)|7.10Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.3748System Of Measurement|
