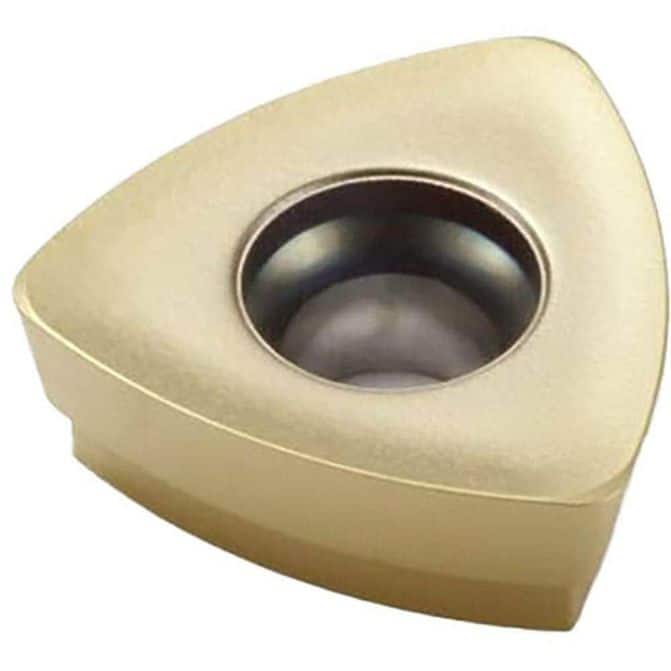

Manufacturer Part Number: 00023601|Insert Style|218.19Insert Size|100Insert Material|Solid CarbideInsert Shape|TrigonInscribed Circle (Inch)|Manufacturer Grade|F40MCorner Radius (Decimal Inch)|0.0315Corner Radius (mm)|Number Of Cutting Edges|3Thickness (Decimal Inch - 4 Decimals)|0.1094Thickness (mm)|Coating/Finish|TiAlN; TiNRelief Angle|12Maximum Depth of Cut (Decimal Inch)|0.0290Maximum Depth of Cut (mm)|Insert Size Code|100TMaterial Grade|Fine GrainWidth (Inch)|Length (Inch)|Thickness (Inch)|7/64Inscribed Circle (Decimal Inch)|0.2780Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.1000 to 0.1250Corner Radius (Inch)|1/32Inscribed Circle Range (Decimal Inch)|0.2500 to 0.3000Length Range (Decimal Inch)|0.0000 to 0.3200Insert Hand|NeutralSeries|218.19-100Coating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|0.1181Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Steel; Cast Iron; Superalloys & TitaniumPrimary Workpiece Material Code|P; K; SSecondary Workpiece Material|Cast Iron; Non-Ferrous MetalSecondary Workpiece Material Code|K; NAnsi Code|218.19-100T-M06Iso Code|218.19-100T-M06Standards|ISOConvex Radius (Decimal Inch)|0.3937Concave Radius (Decimal Inch)|Rake Angle|7Cutting Edge Style|T-LandManufacturers Catalog Number|218.19-100T-M06Cutter Series Compatibility|R218.19-20; R217.21-R100Chip Breaker|M06Cutting Direction|Material Application|Steel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & TitaniumUNSPSC Code|Shape|TriangleLength of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|PVDSingle or Double Sided Insert|SingleIncluded Angle Degree|60Length (mm)|Width (Decimal Inch - 4 Decimals)|0.2780Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.2780System Of Measurement|
