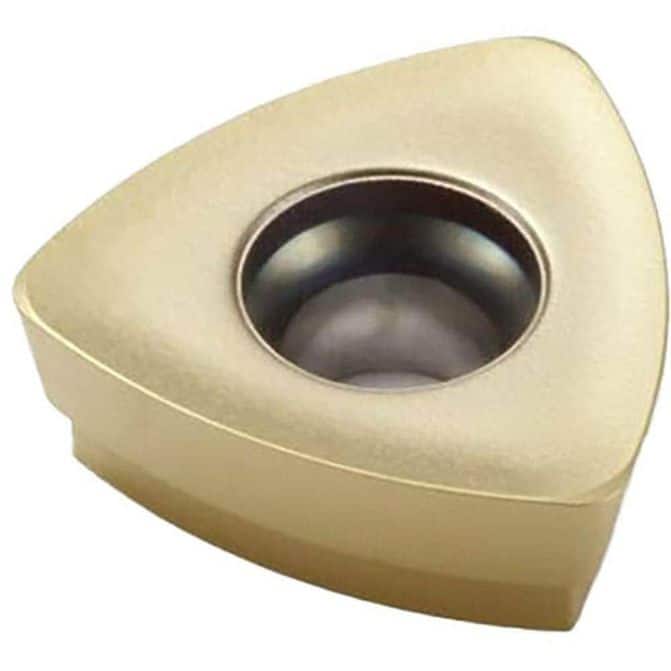

Manufacturer Part Number: 00023607|Insert Style|218.19Insert Size|200Insert Material|Solid CarbideInsert Shape|TrigonInscribed Circle (Inch)|1/2Manufacturer Grade|F40MCorner Radius (Decimal Inch)|0.0236Corner Radius (mm)|Number Of Cutting Edges|3Thickness (Decimal Inch - 4 Decimals)|0.2165Thickness (mm)|Coating/Finish|TiAlN; TiNRelief Angle|12Maximum Depth of Cut (Decimal Inch)|0.7870Maximum Depth of Cut (mm)|Insert Size Code|200T-05Material Grade|Fine GrainWidth (Inch)|1/2Length (Inch)|1/2Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.5000Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.2000 to 0.2200Corner Radius (Inch)|Inscribed Circle Range (Decimal Inch)|0.5000 to 0.5100Length Range (Decimal Inch)|0.5000 to 0.6000Insert Hand|NeutralSeries|218.19-200Coating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|0.2205Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Steel; Cast Iron; Superalloys & TitaniumPrimary Workpiece Material Code|P; K; SSecondary Workpiece Material|Cast Iron; Non-Ferrous MetalSecondary Workpiece Material Code|K; NAnsi Code|218.19-200T-05-M10Iso Code|218.19-200T-05-M10Standards|ISOConvex Radius (Decimal Inch)|0.7874Concave Radius (Decimal Inch)|Rake Angle|10Cutting Edge Style|T-LandManufacturers Catalog Number|218.19-200T-05-M10Cutter Series Compatibility|R218.19-40Chip Breaker|M10Cutting Direction|Material Application|Steel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & TitaniumUNSPSC Code|Shape|TriangleLength of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|PVDSingle or Double Sided Insert|SingleIncluded Angle Degree|60Length (mm)|Width (Decimal Inch - 4 Decimals)|0.5000Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.5000System Of Measurement|
