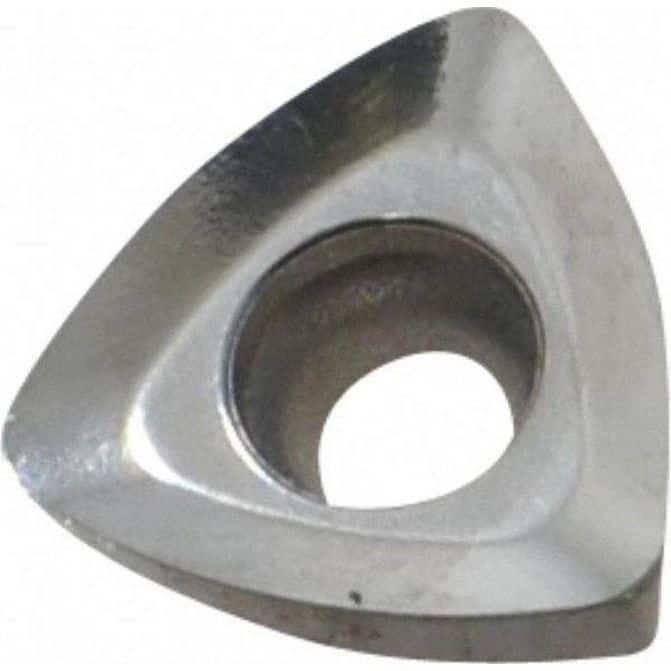

Manufacturer Part Number: 02439321|Insert Style|218.19Insert Size|160Insert Material|Solid CarbideInsert Shape|TrigonInscribed Circle (Inch)|Manufacturer Grade|H25Corner Radius (Decimal Inch)|0.0472Corner Radius (mm)|Number Of Cutting Edges|3Thickness (Decimal Inch - 4 Decimals)|0.1874Thickness (mm)|Coating/Finish|Bright/UncoatedRelief Angle|12Maximum Depth of Cut (Decimal Inch)|0.0790Maximum Depth of Cut (mm)|Insert Size Code|160-04Material Grade|MicrograinWidth (Inch)|Length (Inch)|Thickness (Inch)|3/16Inscribed Circle (Decimal Inch)|0.4402Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.1850 to 0.2000Corner Radius (Inch)|3/64Inscribed Circle Range (Decimal Inch)|0.4000 to 0.5000Length Range (Decimal Inch)|0.4000 to 0.4500Insert Hand|NeutralSeries|218.19-160Coating Process|UncoatedHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|0.1575Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Non-Ferrous MetalPrimary Workpiece Material Code|NSecondary Workpiece Material|Superalloys & TitaniumSecondary Workpiece Material Code|SAnsi Code|218.19-160-04-E07Iso Code|218.19-160-04-E07Standards|ISOConvex Radius (Decimal Inch)|0.6299Concave Radius (Decimal Inch)|Rake Angle|20Cutting Edge Style|HonedManufacturers Catalog Number|218.19-160-04-E07Cutter Series Compatibility|R218.19-32; R217.21-R160; R220.21-R160Chip Breaker|E07Cutting Direction|Material Application|Non-Ferrous Metal; Superalloys & TitaniumUNSPSC Code|Shape|TriangleLength of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|UncoatedSingle or Double Sided Insert|SingleIncluded Angle Degree|60Length (mm)|Width (Decimal Inch - 4 Decimals)|0.4402Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.4402System Of Measurement|
