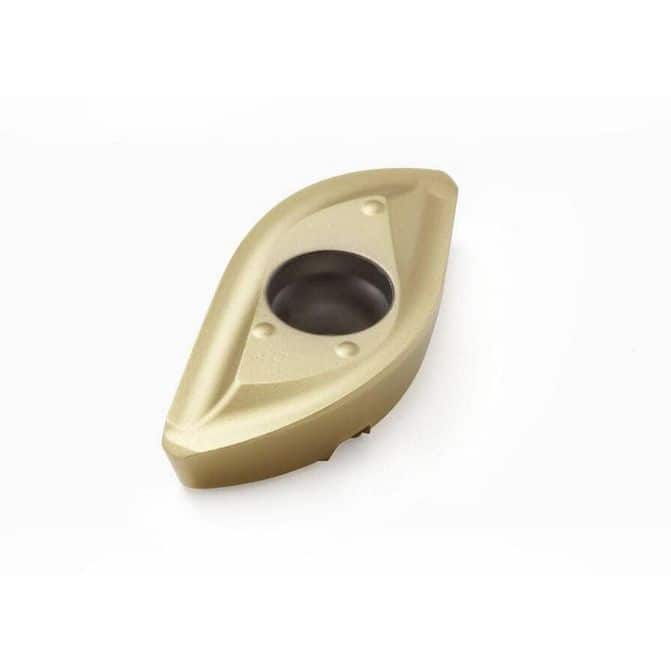

Manufacturer Part Number: 00030464|Insert Style|218.20Insert Size|160Insert Material|Solid CarbideInsert Shape|Ball NoseInscribed Circle (Inch)|1/2Manufacturer Grade|F40MCorner Radius (Decimal Inch)|0.6299Corner Radius (mm)|Number Of Cutting Edges|2Thickness (Decimal Inch - 4 Decimals)|0.2520Thickness (mm)|Coating/Finish|TiAlN; TiNRelief Angle|15Maximum Depth of Cut (Decimal Inch)|1.1020Maximum Depth of Cut (mm)|Insert Size Code|160ERMaterial Grade|Fine GrainWidth (Inch)|1/2Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.5000Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.2500 to 0.3500Corner Radius (Inch)|Inscribed Circle Range (Decimal Inch)|0.5000 to 0.5100Length Range (Decimal Inch)|1.0000+Insert Hand|Right HandSeries|218.20-160Coating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|0.1772Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Steel; Cast Iron; Superalloys & TitaniumPrimary Workpiece Material Code|P; K; SSecondary Workpiece Material|Cast Iron; Non-Ferrous MetalSecondary Workpiece Material Code|K; NAnsi Code|218.20-160ER-M08Iso Code|218.20-160ER-M08Standards|ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|-2Cutting Edge Style|HonedManufacturers Catalog Number|218.20-160ER-M08Cutter Series Compatibility|R218.20-32; R218.20-01.25Chip Breaker|M08Cutting Direction|Material Application|Steel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & TitaniumUNSPSC Code|Shape|Ball NoseLength of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|PVDSingle or Double Sided Insert|SingleIncluded Angle Degree|90Length (mm)|Width (Decimal Inch - 4 Decimals)|0.5000Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|1.2051System Of Measurement|
