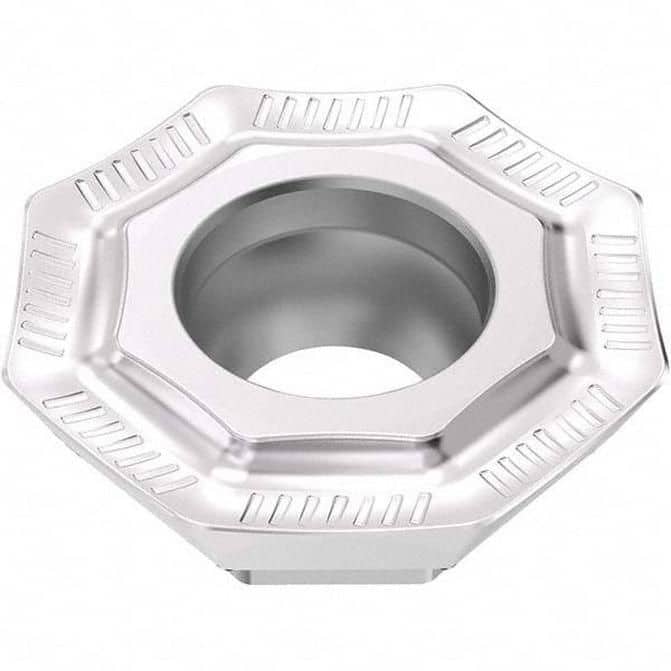

Manufacturer Part Number: 03272984|Insert Style|OFEXInsert Size|05Insert Material|Solid CarbideInsert Shape|OctagonInscribed Circle (Inch)|1/2Manufacturer Grade|MP2501Corner Radius (Decimal Inch)|0.0197Corner Radius (mm)|Number Of Cutting Edges|8Thickness (Decimal Inch - 4 Decimals)|0.1484Thickness (mm)|Coating/Finish|TiCN; Al2O3Relief Angle|26Maximum Depth of Cut (Decimal Inch)|0.1929Maximum Depth of Cut (mm)|Insert Size Code|05T305Material Grade|Fine GrainWidth (Inch)|1/2Length (Inch)|1/2Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.5000Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.1250 to 0.1500Corner Radius (Inch)|Inscribed Circle Range (Decimal Inch)|0.5000 to 0.5100Length Range (Decimal Inch)|0.5000 to 0.6000Insert Hand|NeutralSeries|OFEX-05Coating Process|CVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|0.1772Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|0.2075Rake|PositivePrimary Workpiece Material|SteelPrimary Workpiece Material Code|PSecondary Workpiece Material|Stainless Steel; Cast Iron; Superalloys & TitaniumSecondary Workpiece Material Code|M; K; SAnsi Code|OFEX05T305TN-ME07Iso Code|OFEX05T305TN-ME07Standards|ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|18Cutting Edge Style|T-LandManufacturers Catalog Number|OFEX05T305TN-ME07Cutter Series Compatibility|R217.43-05; R220.43-05Chip Breaker|ME07Cutting Direction|Material Application|Steel; Stainless Steel; Cast Iron; Superalloys & TitaniumUNSPSC Code|Shape|OctagonLength of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|DuratomicSingle or Double Sided Insert|SingleIncluded Angle Degree|135Length (mm)|Width (Decimal Inch - 4 Decimals)|0.5000Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.5000System Of Measurement|
