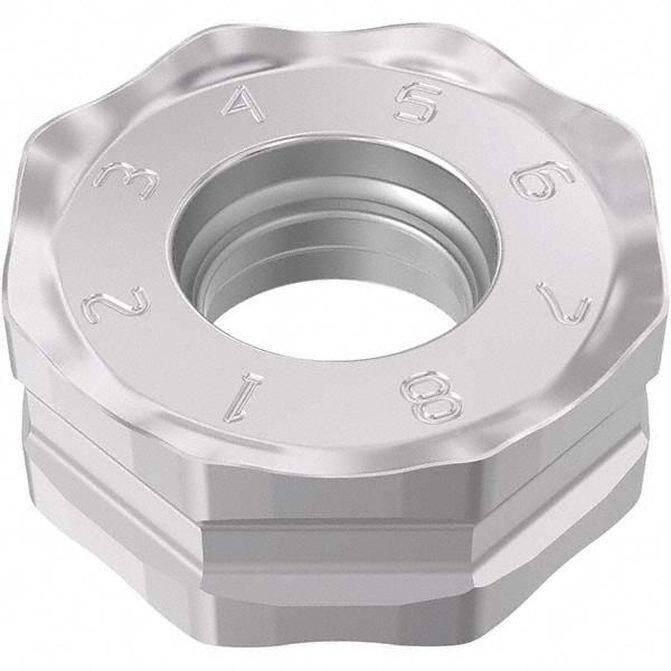

Manufacturer Part Number: 03273002|Insert Style|ONMUInsert Size|05Insert Material|Solid CarbideInsert Shape|OctagonInscribed Circle (Inch)|Manufacturer Grade|MP2501Corner Radius (Decimal Inch)|0.0394Corner Radius (mm)|Number Of Cutting Edges|16Thickness (Decimal Inch - 4 Decimals)|0.1772Thickness (mm)|4.00Coating/Finish|TiCN; Al2O3Relief Angle|0Maximum Depth of Cut (Decimal Inch)|0.1339Maximum Depth of Cut (mm)|Insert Size Code|050410Material Grade|Fine GrainWidth (Inch)|Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.4724Inscribed Circle (mm)|12.00Thickness Range (Decimal Inch)|0.1750 to 0.1850Corner Radius (Inch)|Inscribed Circle Range (Decimal Inch)|0.4000 to 0.5000Length Range (Decimal Inch)|0.4500 to 0.5000Insert Hand|NeutralSeries|ONMU-05Coating Process|CVDHole Diameter (Mm) ( - 0 Decimals)|0.20Hole Diameter (Decimal Inch)|0.1969Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|0.1339Rake|NegativePrimary Workpiece Material|SteelPrimary Workpiece Material Code|PSecondary Workpiece Material|Stainless Steel; Cast Iron; Superalloys & TitaniumSecondary Workpiece Material Code|M; K; SAnsi Code|ONMU050410ANTN-M11Iso Code|ONMU050410ANTN-M11Standards|ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|20Cutting Edge Style|T-LandManufacturers Catalog Number|ONMU050410ANTN-M11Cutter Series Compatibility|R217.48-05; R220.48-05Chip Breaker|M11Cutting Direction|Material Application|Steel; Stainless Steel; Cast Iron; Superalloys & TitaniumUNSPSC Code|Shape|OctagonLength of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|DuratomicSingle or Double Sided Insert|DoubleIncluded Angle Degree|135Length (mm)|12.00Width (Decimal Inch - 4 Decimals)|0.4724Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.4724System Of Measurement|
