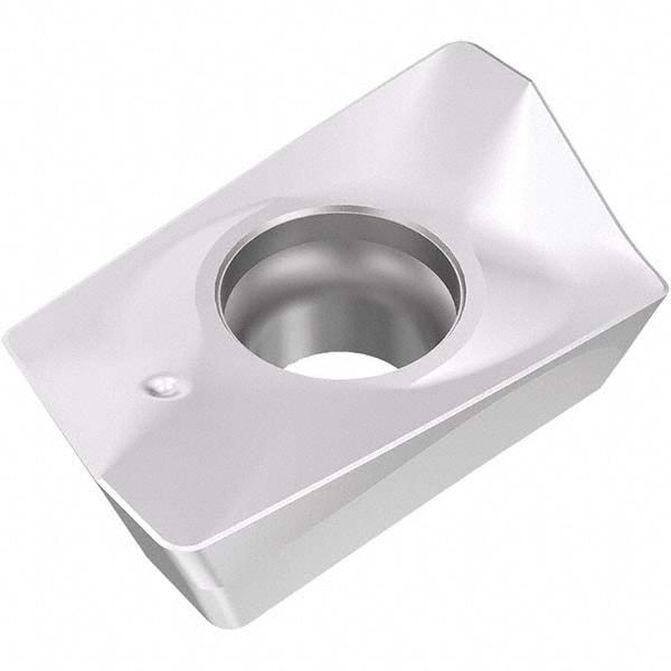

Manufacturer Part Number: 03272865|Insert Style|XOMXInsert Size|18Insert Material|Solid CarbideInsert Shape|ParallelogramInscribed Circle (Inch)|Manufacturer Grade|MP2501Corner Radius (Decimal Inch)|0.0315Corner Radius (mm)|Number Of Cutting Edges|2Thickness (Decimal Inch - 4 Decimals)|0.2520Thickness (mm)|6.40Coating/Finish|TiCN; Al2O3Relief Angle|15Maximum Depth of Cut (Decimal Inch)|0.6693Maximum Depth of Cut (mm)|8.25Insert Size Code|180608Material Grade|Fine GrainWidth (Inch)|Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.4409Inscribed Circle (mm)|11.20Thickness Range (Decimal Inch)|0.2500 to 0.3500Corner Radius (Inch)|1/32Inscribed Circle Range (Decimal Inch)|0.4000 to 0.5000Length Range (Decimal Inch)|0.6500 to 0.7000Insert Hand|Right HandSeries|XOMX-18Coating Process|CVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|0.1969Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|0.6693Rake|PositivePrimary Workpiece Material|SteelPrimary Workpiece Material Code|PSecondary Workpiece Material|Stainless Steel; Cast Iron; Superalloys & TitaniumSecondary Workpiece Material Code|M; K; SAnsi Code|XOMX180608TR-D16Iso Code|XOMX180608TR-D16Standards|ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|11Cutting Edge Style|T-LandManufacturers Catalog Number|XOMX180608TR-D16Cutter Series Compatibility|R217.69-18; R220.69-18Chip Breaker|D16Cutting Direction|Material Application|Steel; Stainless Steel; Cast Iron; Superalloys & TitaniumUNSPSC Code|Shape|ParallelogramLength of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|DuratomicSingle or Double Sided Insert|SingleIncluded Angle Degree|90Length (mm)|16.50Width (Decimal Inch - 4 Decimals)|0.4409Width (mm - 2 Decimals)|11.20Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.6693System Of Measurement|
