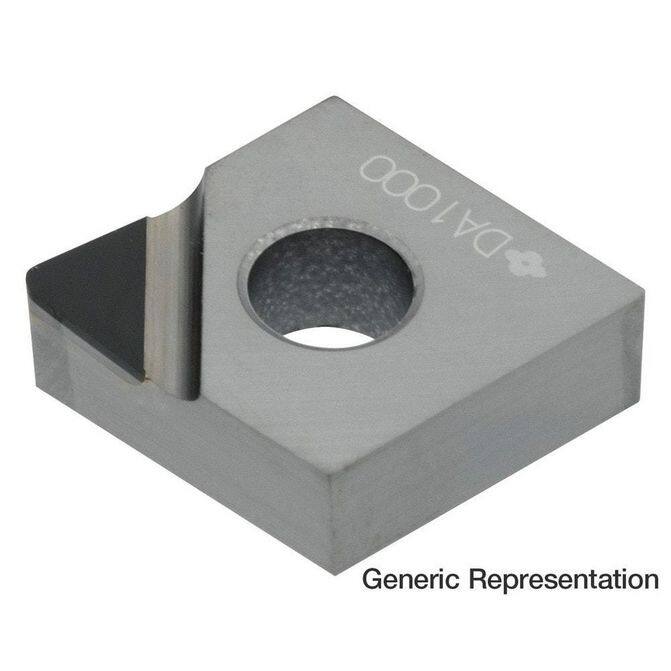

Manufacturer Part Number: 16HQCCH|Relief Angle|0Corner Radius (mm)|Corner Radius (Inch)|1/32Corner Radius (Decimal Inch)|0.0313Included Angle|80.0Manufacturer Grade|DA1000Coating/Finish|CoatedWiper Edge|Insert Hand|Insert Thickness|Insert Thickness (Inch)|3/16Insert Thickness (Decimal Inch)|0.1875Series|CInscribed Circle (Inch)|1/2Inscribed Circle (Decimal Inch)|0.5000Inscribed Circle (mm)|Insert Material|Polycrystalline DiamondInsert Shape|DiamondChipbreaker Operation|Grade Characteristics|Number Of Cutting Edges|Insert Shape Code|CSingle Or Double End|Hole Diameter (Decimal Inch)|0.2031Hole Diameter (Mm) ( - 0 Decimals)|Maximum Depth of Cut (mm)|Maximum Depth of Cut (Decimal Inch)|Maximum Depth of Cut (Fractional Inch)|Insert Holding Method|Clamp; PinWidth (Inch)|Clearance Code|NTolerance Code|MCoating Process|UncoatedLength Range (Decimal Inch)|Rake|PositiveInsert Length (mm)|Insert Length (Decimal Inch)|0.2205Insert Length (Inch)|Primary Workpiece Material|Non-Ferrous MetalPrimary Workpiece Material Code|NSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|NFCNMX432Iso Code|NF-CNMX120408Standards|ANSI; ISO 13399Manufacturers Catalog Number|Cutting Direction|Material Grade|Single or Multi Tipped|Stocking Category|Proprietary Coating Designation|Lead Angle|Coating Classification|Chip Breaker|XRake Angle|10Cutting Edge Style|Style|Industry Standard Number|Width (Decimal Inch - 4 Decimals)|Width (mm - 2 Decimals)|Multi-Use Tool|Full Radius|Multi-Use Application|Tip Length (Decimal Inch)|Tip Length (mm)|ANSI Size Code|ISO Size Code|System Of Measurement|Product Service Code|UNSPSC Code|Insert Style|NF-CNMXInsert Size Code|432
