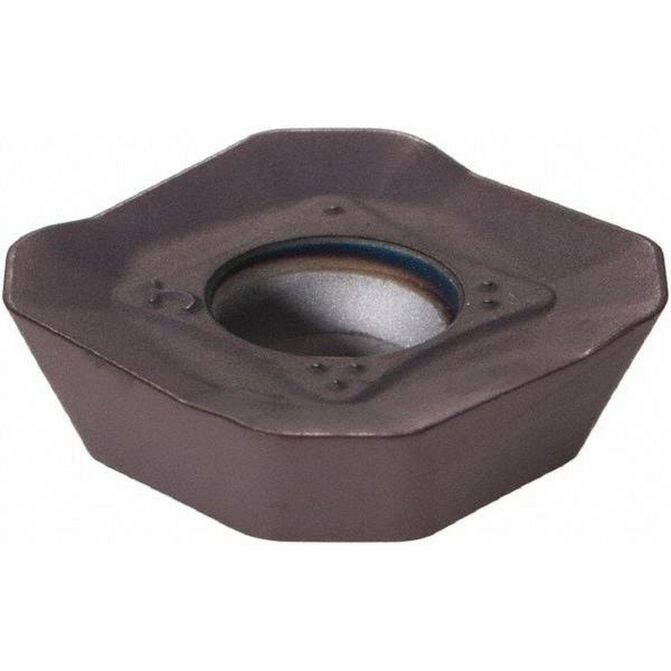

Manufacturer Part Number: 6846104|Insert Style|SWMTInsert Size|13Insert Material|Solid CarbideInsert Shape|SquareInscribed Circle (Inch)|35/64Manufacturer Grade|AH120Corner Radius (Decimal Inch)|0.0590Corner Radius (mm)|Number Of Cutting Edges|4Thickness (Decimal Inch - 4 Decimals)|0.1570Thickness (mm)|4.00Coating/Finish|TiAlNRelief Angle|18.50Maximum Depth of Cut (Decimal Inch)|0.1570Maximum Depth of Cut (mm)|Insert Size Code|13T3Material Grade|P15; M15; K15; S10Width (Inch)|35/64Length (Inch)|35/64Thickness (Inch)|5/32Inscribed Circle (Decimal Inch)|0.5470Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.1500 to 0.1750Corner Radius (Inch)|Inscribed Circle Range (Decimal Inch)|0.5000 to 0.6000Length Range (Decimal Inch)|0.5000 to 0.6000Insert Hand|Right HandSeries|SWMTCoating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Steel; Stainless Steel; Cast Iron; Hard Material; Superalloys & TitaniumPrimary Workpiece Material Code|P; M; K; H; SSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|SWMT13T3AFPR-MJ AH120Iso Code|SWMT13T3AFPR-MJ AH120Standards|ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|Cutting Edge Style|HonedManufacturers Catalog Number|SWMT13T3AFPR-MJCutter Series Compatibility|TAW13; EAW13Chip Breaker|MJCutting Direction|Material Application|Steel; Stainless Steel; Cast Iron; Hard Material; Superalloys & TitaniumUNSPSC Code|Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|PVDSingle or Double Sided Insert|SingleIncluded Angle Degree|90Length (mm)|Width (Decimal Inch - 4 Decimals)|0.5470Width (mm - 2 Decimals)|13.90Multi-Use Tool|NoLength (Decimal Inch - 4 Decimals)|0.5470System Of Measurement|
