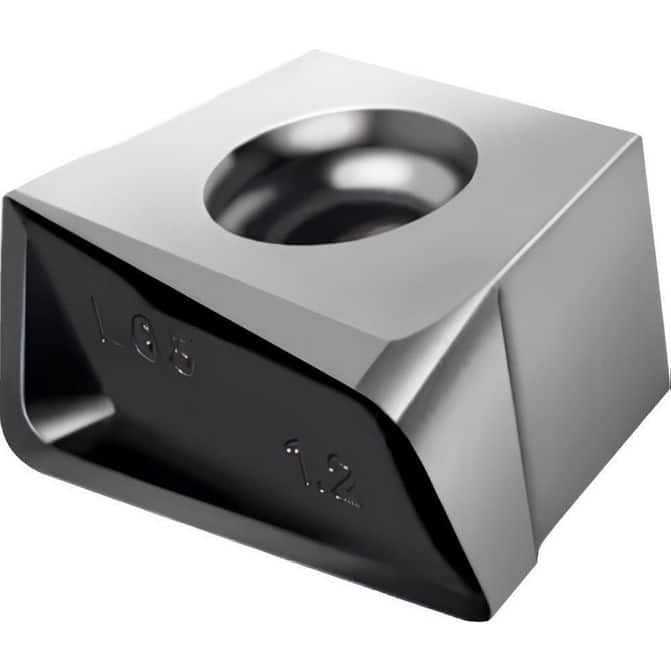

Manufacturer Part Number: 6948577|Insert Style|XNHXInsert Size|13Insert Material|Solid CarbideInsert Shape|ParallelogramInscribed Circle (Inch)|Manufacturer Grade|WSM45XCorner Radius (Decimal Inch)|0.0630Corner Radius (mm)|1.60Number Of Cutting Edges|2Thickness (Decimal Inch - 4 Decimals)|0.2680Thickness (mm)|6.80Coating/Finish|TiCN; Al2O3; TiCNRelief Angle|0.00Maximum Depth of Cut (Decimal Inch)|0.5510Maximum Depth of Cut (mm)|Insert Size Code|130616Material Grade|S45; M45Width (Inch)|Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.2680Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.2500 to 0.3500Corner Radius (Inch)|Inscribed Circle Range (Decimal Inch)|0.2500 to 0.3000Length Range (Decimal Inch)|0.5000 to 0.6000Insert Hand|Right HandSeries|XNHXCoating Process|CVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|NegativePrimary Workpiece Material|Stainless Steel; Superalloys & TitaniumPrimary Workpiece Material Code|M; SSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|XNHX130616R-L65T WSM45XIso Code|XNHX130616R-L65T WSM45XStandards|ANSI; ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|28Cutting Edge Style|HonedManufacturers Catalog Number|XNHX130616R-L65TCutter Series Compatibility|M3255Chip Breaker|L65TCutting Direction|Material Application|Stainless Steel; Superalloys & TitaniumUNSPSC Code|23291601Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|CVDSingle or Double Sided Insert|SingleIncluded Angle Degree|90Length (mm)|14.00Width (Decimal Inch - 4 Decimals)|0.4130Width (mm - 2 Decimals)|10.50Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.5510System Of Measurement|
