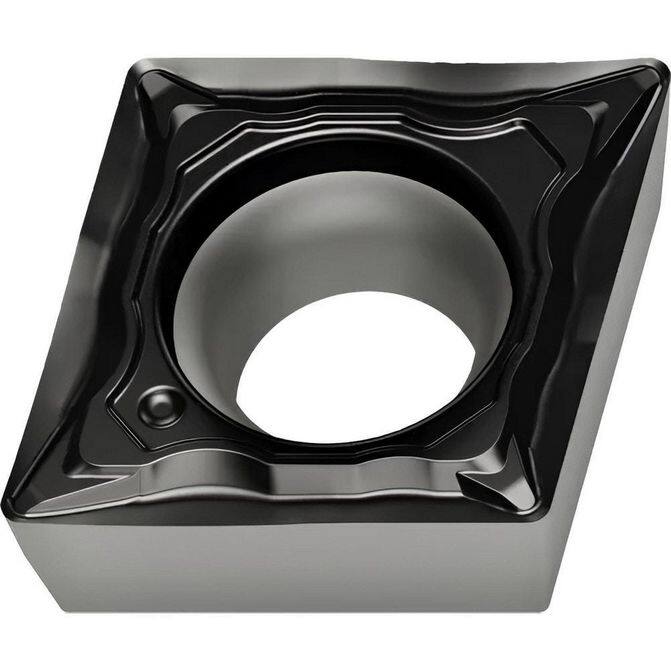

Manufacturer Part Number: 6917251|Relief Angle|7Corner Radius (mm)|0.80Corner Radius (Inch)|1/32Corner Radius (Decimal Inch)|0.0315Included Angle|80degreeManufacturer Grade|WSM20SCoating/Finish|TiCN; Al2O3; AlWiper Edge|NoInsert Hand|NeutralInsert Thickness|Insert Thickness (Inch)|3/16Insert Thickness (Decimal Inch)|0.1875Series|CCMT-FM4Inscribed Circle (Inch)|1/2Inscribed Circle (Decimal Inch)|0.5000Inscribed Circle (mm)|Insert Material|CarbideInsert Shape|Diamond 80Chipbreaker Operation|Grade Characteristics|Number Of Cutting Edges|2Insert Shape Code|CSingle Or Double End|Hole Diameter (Decimal Inch)|0.2170Hole Diameter (Mm) ( - 0 Decimals)|5.50Maximum Depth of Cut (mm)|1.50Maximum Depth of Cut (Decimal Inch)|0.1000Maximum Depth of Cut (Fractional Inch)|Insert Holding Method|ScrewWidth (Inch)|Clearance Code|CTolerance Code|MCoating Process|PVDLength Range (Decimal Inch)|0.5000 - 0.6000Rake|PositiveInsert Length (mm)|12.90Insert Length (Decimal Inch)|0.5080Insert Length (Inch)|Primary Workpiece Material|Stainless Steel; Superalloys & TitaniumPrimary Workpiece Material Code|M; SSecondary Workpiece Material|SteelSecondary Workpiece Material Code|PAnsi Code|Iso Code|CCMT120408-FM4 WSM20SStandards|ANSI; ISOManufacturers Catalog Number|6917251Cutting Direction|Material Grade|M20; S20; P20Single or Multi Tipped|Stocking Category|Proprietary Coating Designation|WSM20SLead Angle|80degreeCoating Classification|PVDChip Breaker|FM4Rake Angle|6Cutting Edge Style|HonedStyle|Industry Standard Number|CCMT432-FM4 WSM20SWidth (Decimal Inch - 4 Decimals)|0.5080inWidth (mm - 2 Decimals)|Multi-Use Tool|YesFull Radius|NoMulti-Use Application|Turning; Facing; BoringTip Length (Decimal Inch)|Tip Length (mm)|ANSI Size Code|ISO Size Code|System Of Measurement|Product Service Code|UNSPSC Code|23242105Insert Style|CCMTInsert Size Code|432
