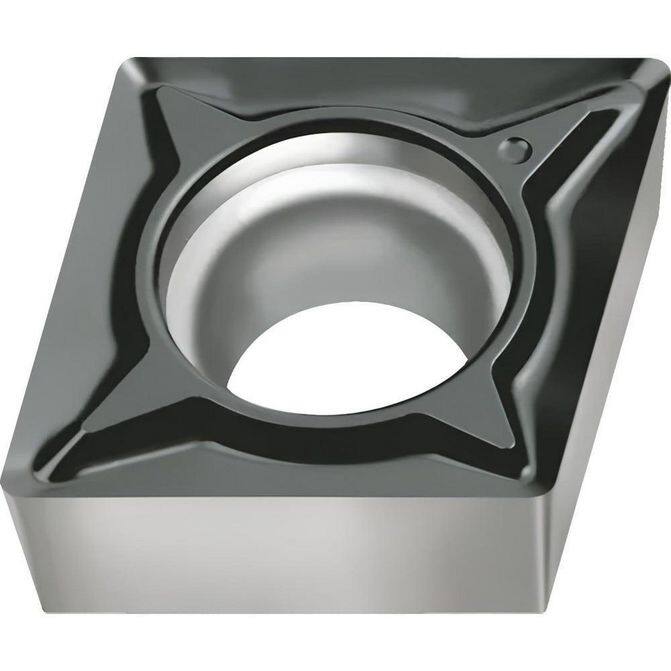

Manufacturer Part Number: 7054039|Relief Angle|7Corner Radius (mm)|0.40Corner Radius (Inch)|1/64Corner Radius (Decimal Inch)|0.0157Included Angle|80degreeManufacturer Grade|WSM20SCoating/Finish|TiCN; Al2O3; AlWiper Edge|NoInsert Hand|NeutralInsert Thickness|3.97Insert Thickness (Inch)|5/32Insert Thickness (Decimal Inch)|0.1563Series|CCGT-FM2Inscribed Circle (Inch)|3/8Inscribed Circle (Decimal Inch)|0.3750Inscribed Circle (mm)|9.53Insert Material|CarbideInsert Shape|Diamond 80Chipbreaker Operation|Grade Characteristics|Number Of Cutting Edges|2Insert Shape Code|CSingle Or Double End|Hole Diameter (Decimal Inch)|0.1730Hole Diameter (Mm) ( - 0 Decimals)|4.40Maximum Depth of Cut (mm)|9.67Maximum Depth of Cut (Decimal Inch)|0.3810Maximum Depth of Cut (Fractional Inch)|Insert Holding Method|ScrewWidth (Inch)|Clearance Code|CTolerance Code|GCoating Process|PVDLength Range (Decimal Inch)|0.3000 - 0.4000Rake|PositiveInsert Length (mm)|9.67Insert Length (Decimal Inch)|0.3810Insert Length (Inch)|Primary Workpiece Material|Stainless Steel; Superalloys & TitaniumPrimary Workpiece Material Code|M; SSecondary Workpiece Material|SteelSecondary Workpiece Material Code|PAnsi Code|Iso Code|CCGT09T304-FM2 WSM20SStandards|ANSI; ISOManufacturers Catalog Number|7054039Cutting Direction|Material Grade|M20; S20; P20Single or Multi Tipped|Stocking Category|Proprietary Coating Designation|WSM20SLead Angle|80degreeCoating Classification|PVDChip Breaker|FM2Rake Angle|18Cutting Edge Style|HonedStyle|Industry Standard Number|CCGT3(2.5)1-FM2 WSM20SWidth (Decimal Inch - 4 Decimals)|0.3810inWidth (mm - 2 Decimals)|9.67Multi-Use Tool|YesFull Radius|NoMulti-Use Application|Turning; Facing; BoringTip Length (Decimal Inch)|Tip Length (mm)|ANSI Size Code|ISO Size Code|System Of Measurement|Product Service Code|UNSPSC Code|23242105Insert Style|CCGTInsert Size Code|32.51
