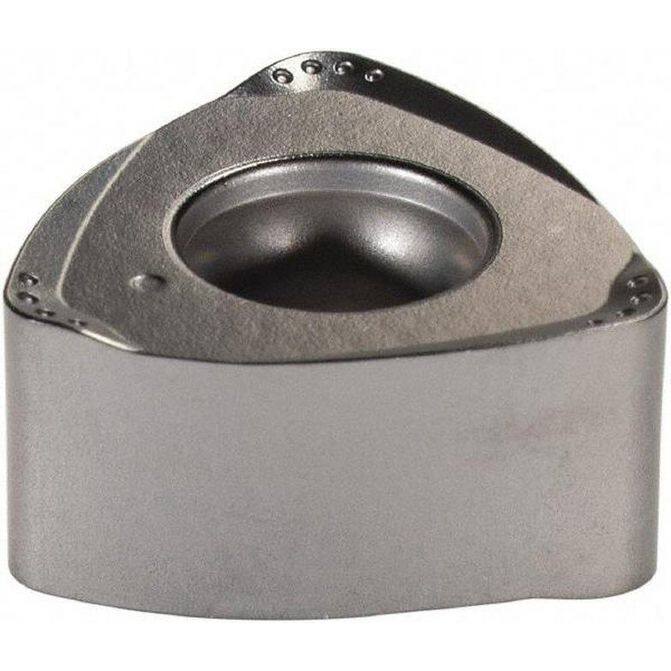

Manufacturer Part Number: 6072488|Insert Style|P23696Insert Size|P2Insert Material|Solid CarbideInsert Shape|TriangleInscribed Circle (Inch)|17/32Manufacturer Grade|WKP25SCorner Radius (Decimal Inch)|0.0630Corner Radius (mm)|1.60Number Of Cutting Edges|6Thickness (Decimal Inch - 4 Decimals)|0.2920Thickness (mm)|Coating/Finish|TiCN; Al2O3; TiCNRelief Angle|0Maximum Depth of Cut (Decimal Inch)|0.4680Maximum Depth of Cut (mm)|Insert Size Code|P23696Material Grade|P25; K25Width (Inch)|17/32Length (Inch)|17/32Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.5330Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.2500 to 0.3500Corner Radius (Inch)|Inscribed Circle Range (Decimal Inch)|0.5100 to 0.6000Length Range (Decimal Inch)|0.5000 to 0.6000Insert Hand|Right HandSeries|P23696Coating Process|CVDHole Diameter (Mm) ( - 0 Decimals)|0.22Hole Diameter (Decimal Inch)|0.2165Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Steel; Cast IronPrimary Workpiece Material Code|P; KSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|P23696-2.0 WKP25SIso Code|P23696-2.0 WKP25SStandards|ANSI; ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|Cutting Edge Style|High Feed RateManufacturers Catalog Number|P23696-2.0Cutter Series Compatibility|F4030Chip Breaker|CommonCutting Direction|Material Application|Steel; Cast IronUNSPSC Code|Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|CVDSingle or Double Sided Insert|DoubleIncluded Angle Degree|60Length (mm)|Width (Decimal Inch - 4 Decimals)|0.5310Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.5330System Of Measurement|
