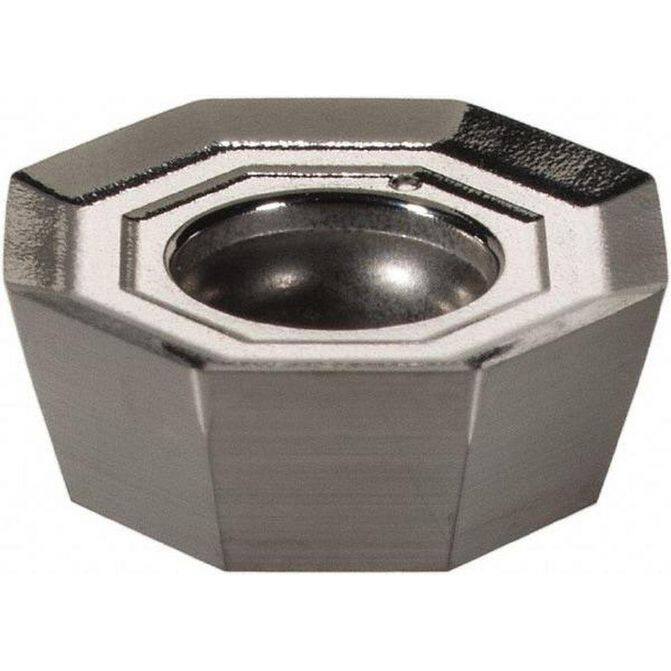

Manufacturer Part Number: 5004797|Insert Style|ODHTInsert Size|05Insert Material|Solid CarbideInsert Shape|OctagonInscribed Circle (Inch)|1/2Manufacturer Grade|WK10Corner Radius (Decimal Inch)|0.0315Corner Radius (mm)|0.80Number Of Cutting Edges|8Thickness (Decimal Inch - 4 Decimals)|0.1875Thickness (mm)|Coating/Finish|Bright/UncoatedRelief Angle|15Maximum Depth of Cut (Decimal Inch)|0.2070Maximum Depth of Cut (mm)|5.26Insert Size Code|0504Material Grade|N10Width (Inch)|Length (Inch)|1/2Thickness (Inch)|3/16Inscribed Circle (Decimal Inch)|0.5000Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.1850 to 0.2000Corner Radius (Inch)|1/32Inscribed Circle Range (Decimal Inch)|0.5000 to 0.5100Length Range (Decimal Inch)|0.5000 to 0.6000Insert Hand|NeutralSeries|ODHTCoating Process|UncoatedHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|Cutting Edge Effective Length (mm)|5.26Cutting Edge Effective Length (Decimal Inch)|0.2071Rake|PositivePrimary Workpiece Material|Non-Ferrous MetalPrimary Workpiece Material Code|NSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|ODHT0504ZZN-G88 WK10Iso Code|ODHT0504ZZN-G88 WK10Standards|ANSI; ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|20Cutting Edge Style|SharpManufacturers Catalog Number|ODHT0504ZZN-G88Cutter Series Compatibility|M5004Chip Breaker|G88Cutting Direction|Material Application|Non-Ferrous MetalUNSPSC Code|Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|UncoatedSingle or Double Sided Insert|SingleIncluded Angle Degree|135Length (mm)|5.26Width (Decimal Inch - 4 Decimals)|0.2070Width (mm - 2 Decimals)|5.26Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.5000System Of Measurement|
