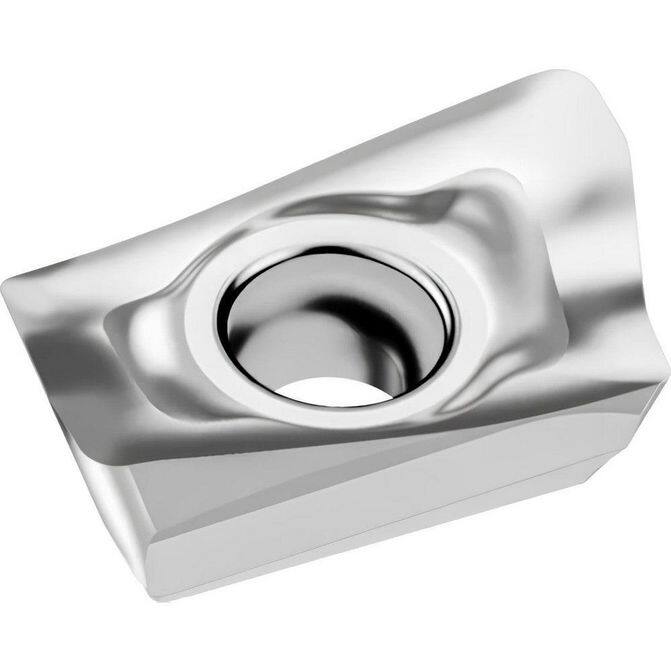

Manufacturer Part Number: 5055689|Insert Style|ADHTInsert Size|12Insert Material|Solid CarbideInsert Shape|ParallelogramInscribed Circle (Inch)|Manufacturer Grade|WK10Corner Radius (Decimal Inch)|0.0315Corner Radius (mm)|0.80Number Of Cutting Edges|2Thickness (Decimal Inch - 4 Decimals)|0.1875Thickness (mm)|Coating/Finish|Bright/UncoatedRelief Angle|15.00Maximum Depth of Cut (Decimal Inch)|0.5350Maximum Depth of Cut (mm)|12.00Insert Size Code|1204Material Grade|N10Width (Inch)|Length (Inch)|Thickness (Inch)|3/16Inscribed Circle (Decimal Inch)|0.3310Inscribed Circle (mm)|8.40Thickness Range (Decimal Inch)|0.1850 to 0.2000Corner Radius (Inch)|1/32Inscribed Circle Range (Decimal Inch)|0.3000 to 0.3500Length Range (Decimal Inch)|0.5000 to 0.6000Insert Hand|Right HandSeries|ADHTCoating Process|UncoatedHole Diameter (Mm) ( - 0 Decimals)|0.13Hole Diameter (Decimal Inch)|0.1339Cutting Edge Effective Length (mm)|12.00Cutting Edge Effective Length (Decimal Inch)|0.4724Rake|PositivePrimary Workpiece Material|Non-Ferrous MetalPrimary Workpiece Material Code|NSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|ADHT1204PER-G88 WK10Iso Code|ADHT1204PER-G88 WK10Standards|ANSI; ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|20Cutting Edge Style|SharpManufacturers Catalog Number|ADHT1204PER-G88Cutter Series Compatibility|F2010; F4042; F4138Chip Breaker|G88Cutting Direction|Material Application|Non-Ferrous MetalUNSPSC Code|23291601Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|UncoatedSingle or Double Sided Insert|SingleIncluded Angle Degree|85Length (mm)|12.00Width (Decimal Inch - 4 Decimals)|0.3310Width (mm - 2 Decimals)|12.00Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.5350System Of Measurement|
