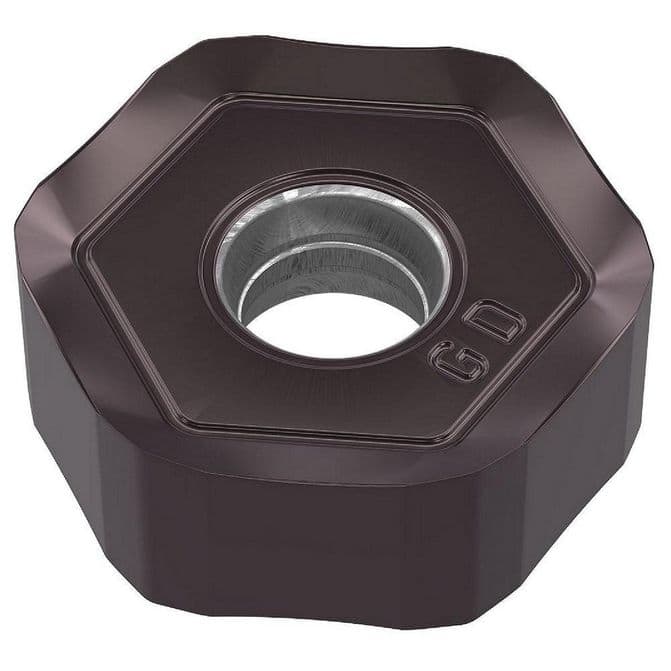

Product Details: Manufacturer Part Number: 5895349|Insert Style|HNGJInsert Size|09Insert Material|Solid CarbideInsert Shape|HexagonInscribed Circle (Inch)|5/8Manufacturer Grade|WP35CMCorner Radius (Decimal Inch)|0.0469Corner Radius (mm)|Number Of Cutting Edges|12Thickness (Decimal Inch - 4 Decimals)|0.2188Thickness (mm)|Coating/Finish|Al2O3; TiCN; TiNRelief Angle|0.00Maximum Depth of Cut (Decimal Inch)|0.3383Maximum Depth of Cut (mm)|Insert Size Code|0905Material Grade|Width (Inch)|5/8Length (Inch)|5/8Thickness (Inch)|7/32Inscribed Circle (Decimal Inch)|0.6250Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.2000 to 0.2200Corner Radius (Inch)|3/64Inscribed Circle Range (Decimal Inch)|Length Range (Decimal Inch)|0.6000 to 0.6500Insert Hand|NeutralSeries|M1200Coating Process|MTCVDHole Diameter (Mm) ( - 0 Decimals)|0.20Hole Diameter (Decimal Inch)|0.1969Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|NegativePrimary Workpiece Material|Steel; Cast IronPrimary Workpiece Material Code|P; KSecondary Workpiece Material|Stainless SteelSecondary Workpiece Material Code|MAnsi Code|HNGJ535ANSNGDIso Code|HNGJ0905ANSNGDStandards|ANSI; ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|Cutting Edge Style|Chamfered; HonedManufacturers Catalog Number|HNGJ535ANSNGDCutter Series Compatibility|M1200Chip Breaker|GDCutting Direction|Material Application|Steel; Stainless Steel; Cast IronUNSPSC Code|23291601Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|CVDSingle or Double Sided Insert|DoubleIncluded Angle Degree|120Length (mm)|Width (Decimal Inch - 4 Decimals)|0.6250Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.6250System Of Measurement|
