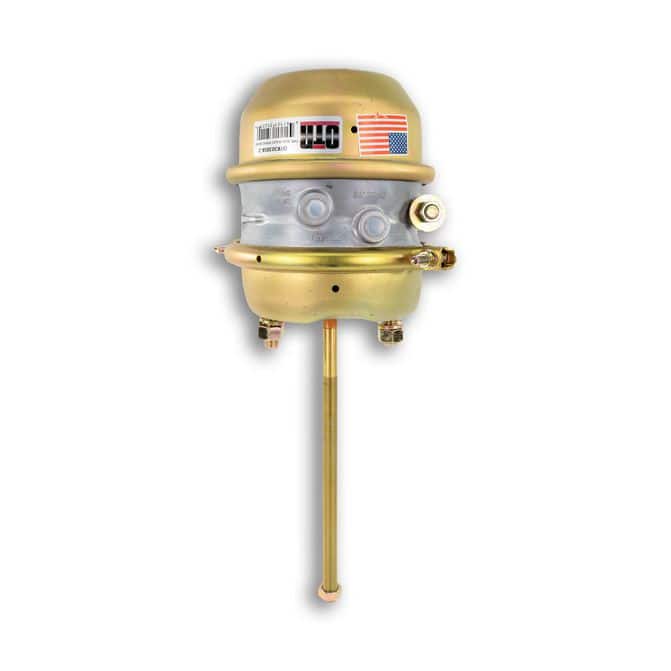

OTR 3030 Type Standard Stroke Spring Brake Chamber OTR3030SB2

Distance To Large Clevis Pin Center From Service Housing Face:

0

Chamber Type:

Spring combination

Service Size Type:

30

Clevis Included:

No

Warranty:

2 Year

Stroke Type:

Standard

Clevis Type:

Threaded

Pushrod Threads:

5/8 in-18

Notes:

Double Diaphragm - Std Stroke - Parking Brakes

Spring Size Type:

30

Brake Type:

Drum

Diaphragm Material:

N/A

Mounting Stud Spacing (Center to Center):

4.75 in

Mounting Stud Threads:

5/8 in-11

Stroke Length:

2.50 in

Mountind Stud Length:

1.54 in

Pushrod Length:

8.00 in

VMRS:

013010034

The OTR 3030 Type Standard Stroke Spring Brake Chamber, made with Expertise Built In™, boasts reliability as a durable braking solution with superior OEM quality power performance. This OTR brake chamber is manufactured in an innovative facility with precision and strength in mind. In addition, this OTR brake chamber features reinforced mounting studs to prevent damage and provide rigidity. Featuring a thick steel push rod-late, rolled edge, and CBC welding for optimal strength, this heavy duty brake chamber exceeds OEM standards. In the end, this heavy duty trailer brake chamber replacement is backed by modern technology, ensuring the high-quality performance you desire for your semi truck. FleetPride is your First Click in Heavy Duty®.

Includes caging bolt
Designed, tooled, and tested in the USA to meet or exceed all SAE standards
Non‐pressure epoxy coating of 10 ga. housing prevents long-term corrosion/rust that powder coatings allow
3030 type, standard stroke
The zinc-coated clamp bands have matched stamping for maximum seal/life. The alloy steel maintains consistent long-life pressure.
Thick steel push rod-plate exceeds OE standards and is CNC welded for superior strength
Dust shield keeps foreign contaminants like dirt, sand, and moisture out for added corrosion resistance
2-year warranty

179.SB3030S3013933030CE3030CHAMBER3030CISZ3030HDA3030SB23030SHORTSTROKEABPN24A13030CDABPN24A43030CDABPN42A13030CDABPN42A43030CDAKGC3030AKLCP3030ATXCTS3030BC3030CCRTBRKEV3030PPBBXNT3030STD120TCBXNT3030STD56TCBXNT3030STD78TCDAY3030CISEM30300GD3030WCHD3030MIR3030TCSPPLBTS3030SB3030CCT3030PBBT3030PPBTL3030NCUT3030GCZAJ3430051ZAJ3630051ZZGC3030

AL-KO KOBER CORP DIV OF HAYES AXLE

S16987

BENDIX

5007132N 800831 801300 K129605 NT3030STD120TC NT3030STD56TC NT3030STD78TC

DAYTON PARTS

3030C

HALDEX

GC3030 GC3030P40 LCP3030 MID3030P76

HDVALUE

HDVSTD30UC

MERITOR

3030TN2C

MGM BRAKES

34300513430051X3630051

MOTORAD

3030

NEW LIFE

1010460

NON-BRANDED

FLT3030SB28

OTR

OTR3030SB OTR3030SB2OTR30330SB2

POWER PRODUCTS

3030SB

RANGER BRAKE

3030TBTS30GTABC3030

TSB

3030TN2ULPC
